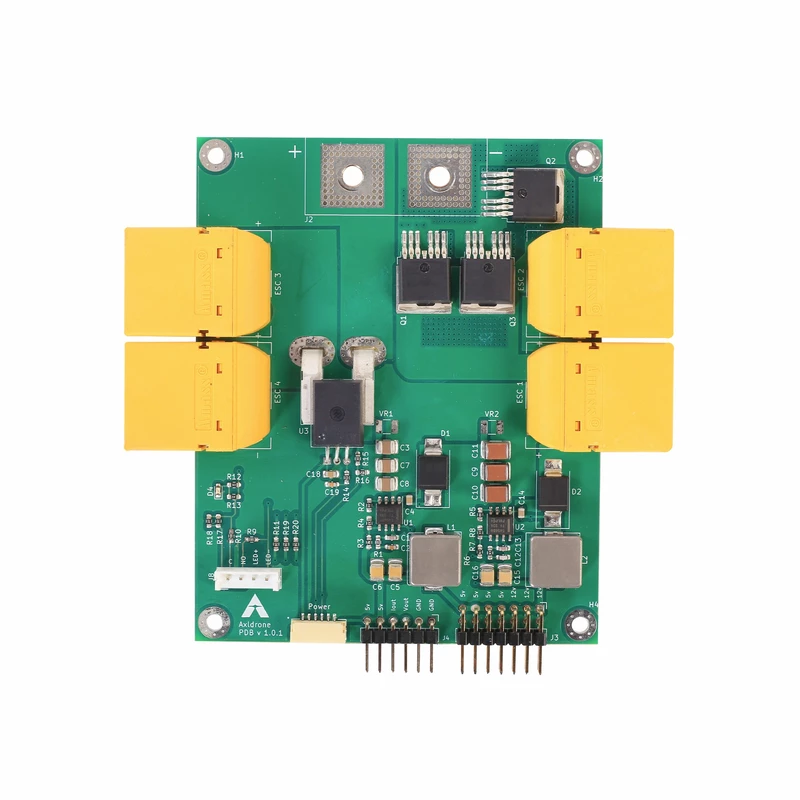

PDB 200A
200A Power Distribution Board
200A continuous current with current sensor
Input voltage: 20–60V
4× XT90 connectors (50A each) for ESCs/motors
Analog voltage & current sensor outputs for FCs and robotics
Anti-spark soft switching for inductive loads
DC-DC converters: 20–60V to 5V/5A, 20–60V to 12V/5A
5V & 12V output terminals (2.54mm standard) for flight controllers
100% Made in India
Input voltage: 20–60V
4× XT90 connectors (50A each) for ESCs/motors
Analog voltage & current sensor outputs for FCs and robotics
Anti-spark soft switching for inductive loads
DC-DC converters: 20–60V to 5V/5A, 20–60V to 12V/5A
5V & 12V output terminals (2.54mm standard) for flight controllers
100% Made in India
$80.99
QTY
Product Details
High-Current Drone Power Distribution Board (PDB) – 200A with 12V & 5V Outputs
This high-performance power distribution board for drones is built to handle demanding UAV and electronic systems with up to 60V input (compatible with 14S LiPo batteries). Designed for reliability and efficiency, it delivers stable, regulated 12V and 5V outputs at 5A each, ensuring consistent power for flight controllers, sensors, and onboard electronics.
Engineered with an advanced anti-spark soft-switch, this drone PDB enables smooth, spark-free power-ups in inductive environments. The board features four XT90 connectors supporting up to 200A total current, making it suitable for heavy-lift and industrial drone applications.
Integrated Hall-effect current and voltage sensors provide accurate, real-time analog telemetry, giving you full visibility into power performance during operation.
Whether you're building a UAV or robotic system, this drone power distribution board ensures safe, efficient, and intelligent power management for professional-grade performance.
Key Features & Specifications
High Current Capacity: Capable of handling high current (up to 200A)
Anti-spark soft switching for inductive loads
Input voltage up to 20-60V (14S)
4 x XT90 connectors 50A each for ESC with Motor
Analog battery voltage and current sensors output for Flight controllers and Robotic applications
DC - DC convertor from 20-60 V input (up to 14S Battery) to 5V 5A output, DC - DC convertor from 20-60 V input (up to 14S battery) to 12V 5A output
Product Dimensions: 10.5 x 10.5 x 1.2 Centimeters.
Item Weight: ~ 90 g
Material: Glass fiber
5V and 12V power output terminals (standard 2.54mm/0.1" connectors)
Power output for the flight controller (example Pixhawk, Cube Orange)
100% Made in India with non-Chinese components under the Make in India program
Designed For
Heavy-lift and industrial UAVs
VTOL aircraft and commercial drone platforms
Electric cycles and skateboards
Robotics and custom high-power multi-rotor systems
Package Includes
1 × 200A Power Distribution Board
1 × 220 µF electrolytic capacitor (100 V) for added input stability
