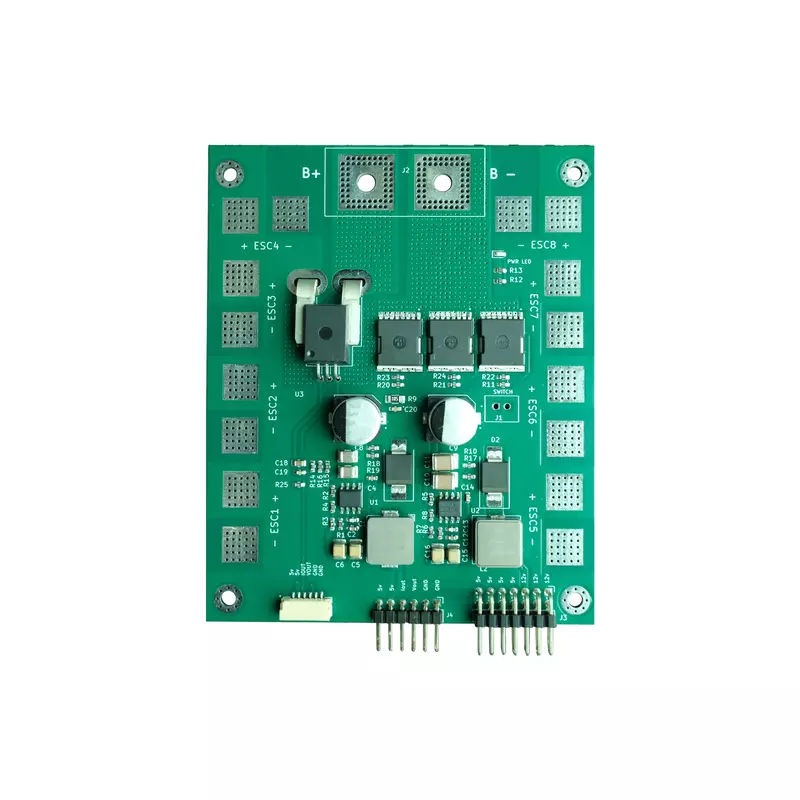

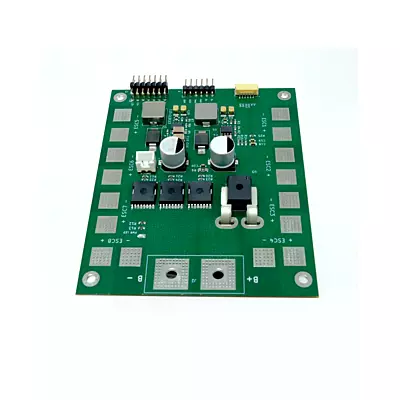

PDB 400A
400A Power Distribution Board
8 × 60A high-current output pads
Integrated Hall-effect current sensing
Dual regulated BEC outputs (12V & 5V @ 4A each)
MOSFET-based soft power switching
Large area 2oz copper planes for efficient current handling
Integrated Hall-effect current sensing
Dual regulated BEC outputs (12V & 5V @ 4A each)
MOSFET-based soft power switching
Large area 2oz copper planes for efficient current handling
$91.99
QTY
Product Details
400A Power Distribution Board (PDB) for Drones & High-Power Systems
The PDB 400A Power Distribution Board is a high-current solution engineered for advanced drone systems, UAV platforms, and high-power electronic applications. Designed with a robust 4-layer PCB architecture, it ensures stable, efficient, and low-loss power distribution even in demanding operational environments.
Ideal as a power distribution board for drones, this unit supports multi-motor configurations with clean and organized power routing to ESCs, flight controllers, and onboard electronics. Its optimized copper layout and high-current handling capability deliver consistent electrical performance under continuous load, making it reliable for mission-critical applications.
Built for performance and safety, this drone power distribution board (PDB) features integrated current sensing for real-time power monitoring and diagnostics. It also includes regulated voltage outputs to support auxiliary systems and a controlled power switching mechanism that protects connected components during startup and shutdown.
Whether you're building heavy-lift UAVs or complex electronic systems, the PDB 400A ensures efficient power management, reduced electrical losses, and long-term reliability.
Key Features & Specifications
Capable of handling high current applications (up to 400A continuous distributed load).
Input voltage up to 14 - 60 V (14S).
MOSFET-based soft power switching.
8 × 60A high-current solder output pads for ESC connections.
Integrated Hall-effect current sensing.
Dual regulated BEC outputs: 5V @ 4A and 12V @ 4A.
Large-area 2oz copper planes for efficient current handling.
LED power indicator.
JST port for external switch connection.
Power output for the flight controller via JST connectors
Dimensions: 106 mm × 87 mm × 12 mm
Weight: 55g
Made in India under the Make in India program
Designed For
Heavy-lift octacopters
Industrial UAV platforms
Autonomous ground vehicles
High-power robotics
Embedded systems requiring high current distribution
Package Includes
1 x 400A Power Distribution Board
1 x 220uF 100V capacitor
