axl P12
UHF RFID Antenna (902–928 MHz)
Left-Hand Circular Polarization (LHCP) for reliable multi-angle tag reading
Up to 7.0 dBiC gain for strong RFID read performance
Broad 95° × 60° beamwidth for efficient coverage
Read range up to 3.5 meters (11.5 ft)
Multiple SMA and MCX connector options for flexible integration
$137.99
QTY
Connector Type
Product Details

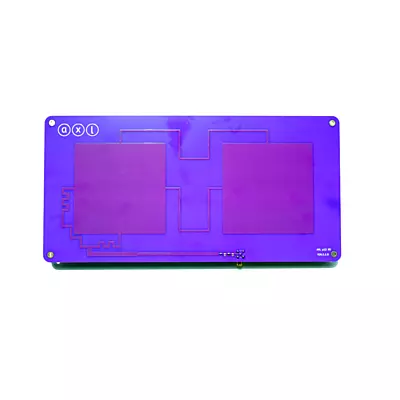

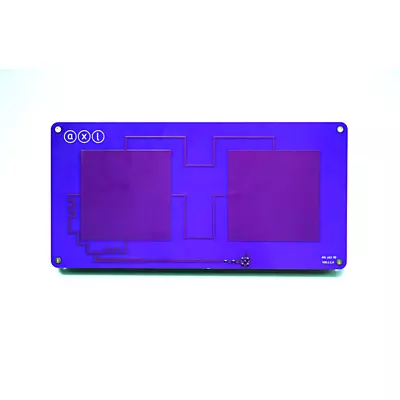

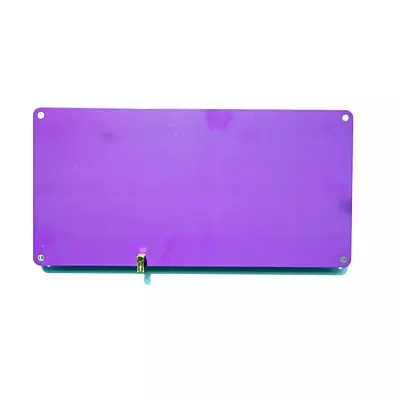

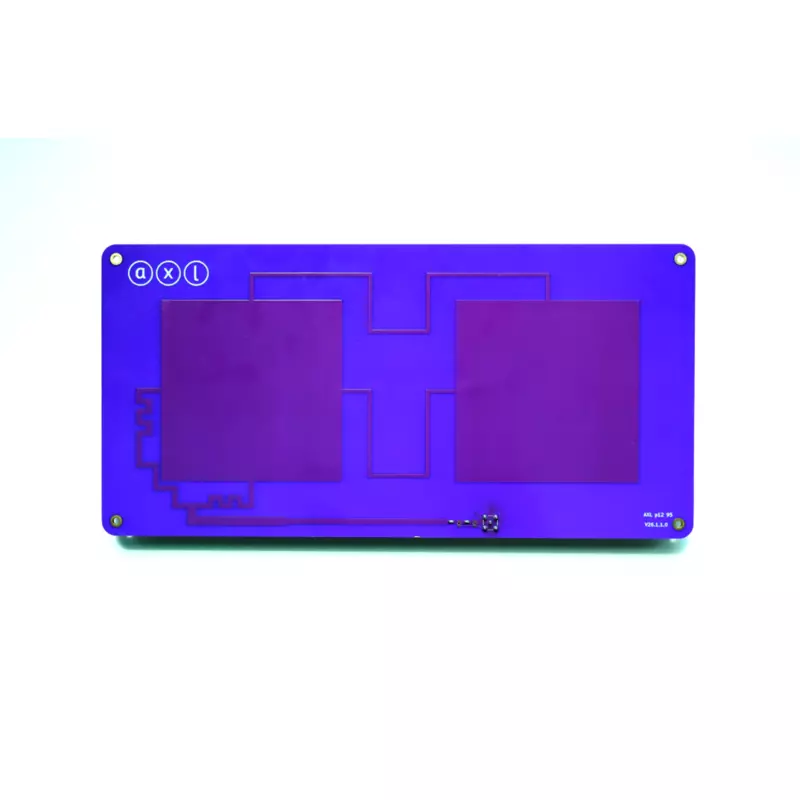

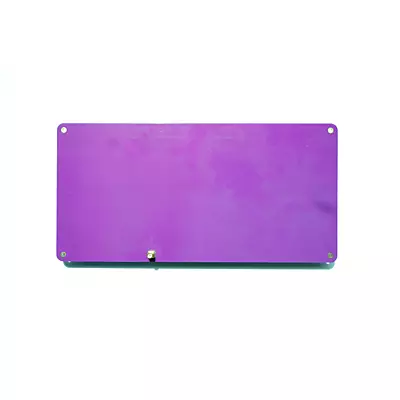

The AXL P12 95 is a high-performance UHF RFID antenna designed for operation within the FCC 902–928 MHz frequency band, utilizing advanced patch antenna technology. It provides a broad hemispherical radiation pattern, with beamwidths of 95° in elevation and 60° in azimuth, enabling reliable and consistent tag detection over a wide area.
The antenna offers a typical gain of 6.5 dBiC and a peak gain of 7.0 dBiC, supporting strong read performance in demanding environments. It features left-hand circular polarization (LHCP) with excellent axial ratio performance 1.55 dB at boresight and 4.05 dB at the 3 dB beamwidth, ensuring dependable readability regardless of tag orientation.
With a VSWR below 2.0:1 and a standard 50 Ω input impedance, the antenna ensures efficient power transfer and low signal reflection. A front-to-back ratio under -15 dB minimizes rear radiation, enhancing forward performance. For integration flexibility, it supports SMA and MCX connectors in flange, right-angle, and edge-mount configurations.
Key Specifications
Operating Frequency: FCC 902-928 MHz
Polarization Circular - LHCP (Left Hand Circular Polarization)
Gain US version 6.5 dBiC (Typical), 7.0 dBiC (Max)
MaxRad Distance Upto3.5m(11.5ft)
ElevationBeamwidth: 95°
AzimuthBeamwidth: 60°
InputImpedance: 50Ω
VSWR: <2.0:1 (Typical)
Overall size: 277 x 137 x 1.5 mm
Weight: 135g
Product Variation with Connector Type FCC (902-928 MHz)
Flange Straight: AXL-P1295-FLSMA
Flange Right Angle: AXL-P1295-FRSMA
Edge Mount: AXL-P1295-EMSMA
