axl P11 E

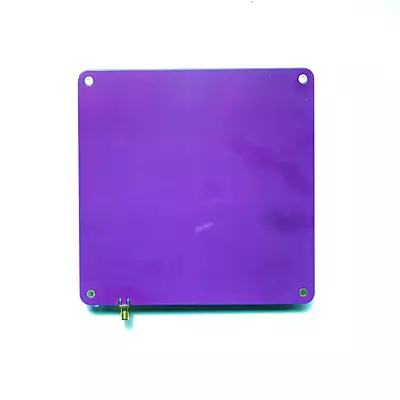

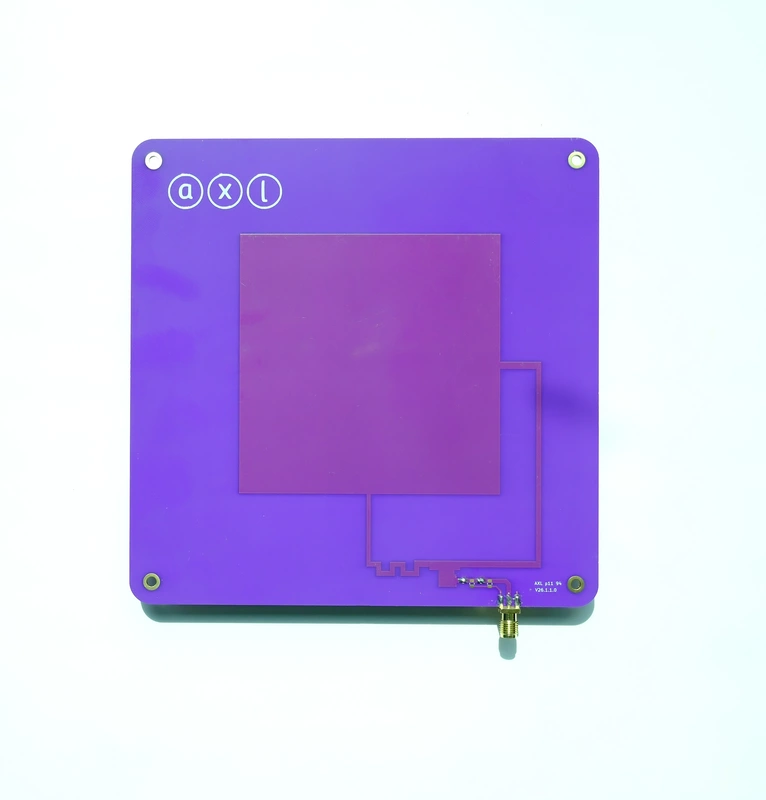

The AXL P11 94 is a UHF RFID antenna designed for operation within the FCC 902–928 MHz band, utilizing advanced patch antenna technology to deliver reliable, wide-area performance. It produces a hemispherical radiation pattern with beamwidths of 90° in both elevation and azimuth, enabling consistent tag detection across broad coverage zones.

This antenna provides a typical gain of 4.5 dBiC and a peak gain of 4.8 dBiC, supporting stable read performance in demanding RF environments. It features right-hand elliptical polarization (RHEP), with axial ratios of 9.0 dB at boresight and 10.1 dB within the 3 dB beamwidth, ensuring dependable readability regardless of tag orientation.

Electrical characteristics include a VSWR of less than 2.0:1 and a standard 50 Ω input impedance for efficient power transfer and minimal signal reflection. A front-to-back ratio below -15 dB helps suppress rear radiation and improve forward directivity.

For flexible system integration, the AXL P11 94 supports SMA and MCX connector options available in flange, right-angle, and edge-mount configurations, making it suitable for a wide range of embedded and industrial RFID applications.
