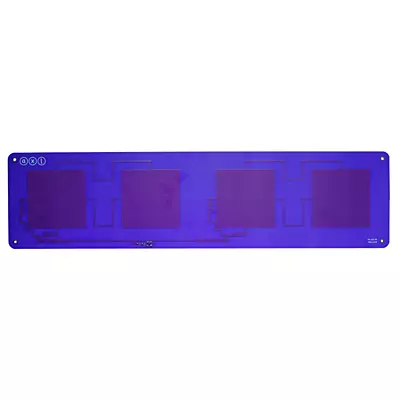

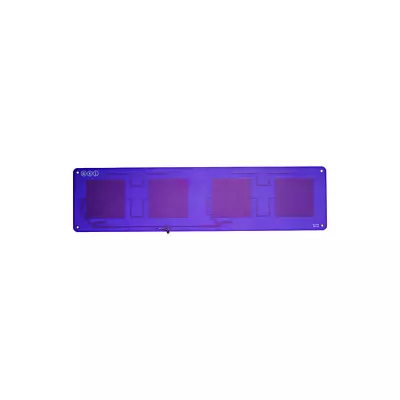

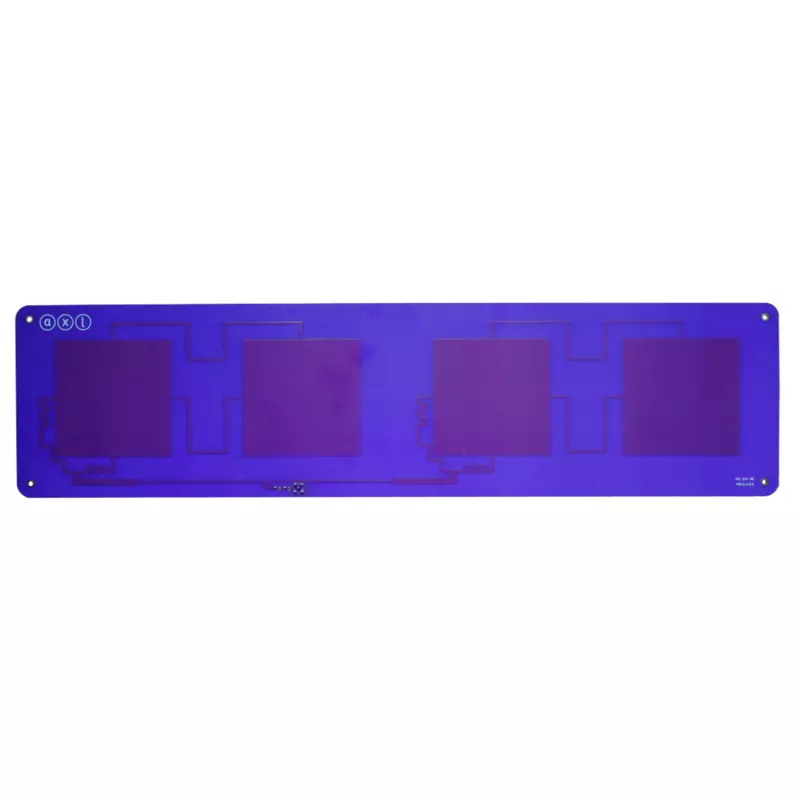

axl P14
UHF RFID Antenna (902–928 MHz)
Left-Hand Circular Polarization (LHCP) for reliable tag readability
Up to 9.8 dBiC gain for extended RFID read performance
Focused 90° × 30° beam pattern for targeted coverage
Read range up to 5 meters (15 ft)
Advanced patch antenna design for high-efficiency operation
Multiple SMA and MCX connector options for flexible integration
$242.99
QTY
Connector Type
Product Details
The AXL P14 96 is a UHF RFID antenna designed for operation in the FCC 902–928 MHz band, utilizing advanced patch antenna technology to deliver focused, high-efficiency performance. It generates a hemispherical radiation pattern with beamwidths of 90° in elevation and 30° in azimuth, providing controlled coverage and reliable tag detection
across targeted areas.
This antenna offers a typical gain of 9.0 dBiC and reaches up to 9.8 dBiC peak gain, supporting strong and consistent read capability in demanding environments. It employs left-hand circular polarization (LHCP), achieving axial ratios of 2.31 dB at boresight and 3.14 dB within the 3 dB beamwidth to maintain stable readability regardless of tag
orientation.
Electrical performance includes a VSWR of less than 2.0:1 and a standard 50 Ω input impedance, ensuring efficient power transfer with minimal reflection. A front-to-back ratio below -15 dB reduces rear radiation and enhances forward directivity.
For integration flexibility, the AXL P14 96 supports SMA and MCX connector options available in flange, right-angle, and edge-mount configurations, making it suitable for a variety of embedded and industrial RFID deployments.
Key Specifications
Operating Frequency: FCC 902-928 MHz
Polarization Circular - LHCP (Left Hand Circular Polarization)
Gain US version 9.0 dBiC (Typical), 9.8 dBiC (Max)
MaxRad Distance Upto5.0m(15.0ft)
ElevationBeamwidth: 90°
AzimuthBeamwidth: 30°
InputImpedance: 50Ω
VSWR: <2.0:1 (Typical)
Overall size: 557 x 140 x 1.5 mm
Weight: 275g
Product Variation with Connector Type FCC (902-928 MHz)
Flange Straight: AXL-P1496-FLSMA
Flange Right Angle: AXL-P1496-FRSMA
Edge Mount: AXL-P1496-EMSMA
